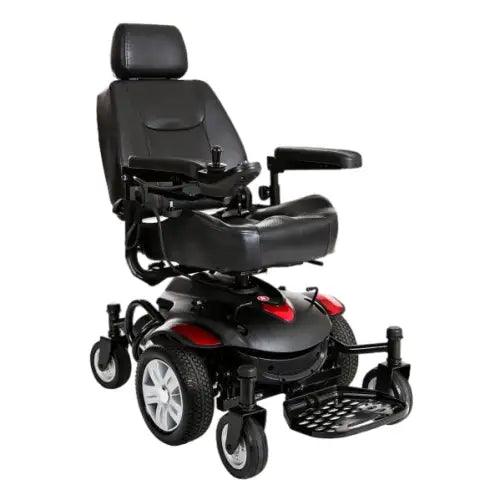

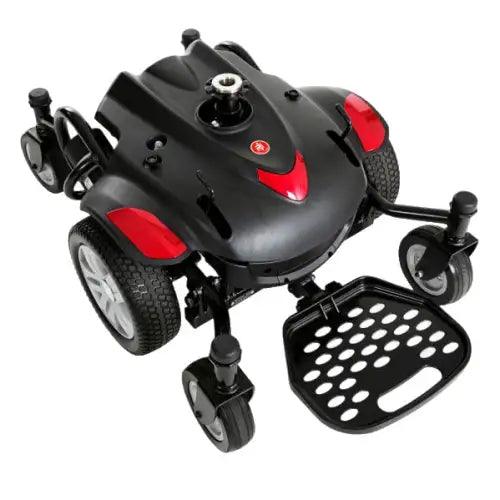

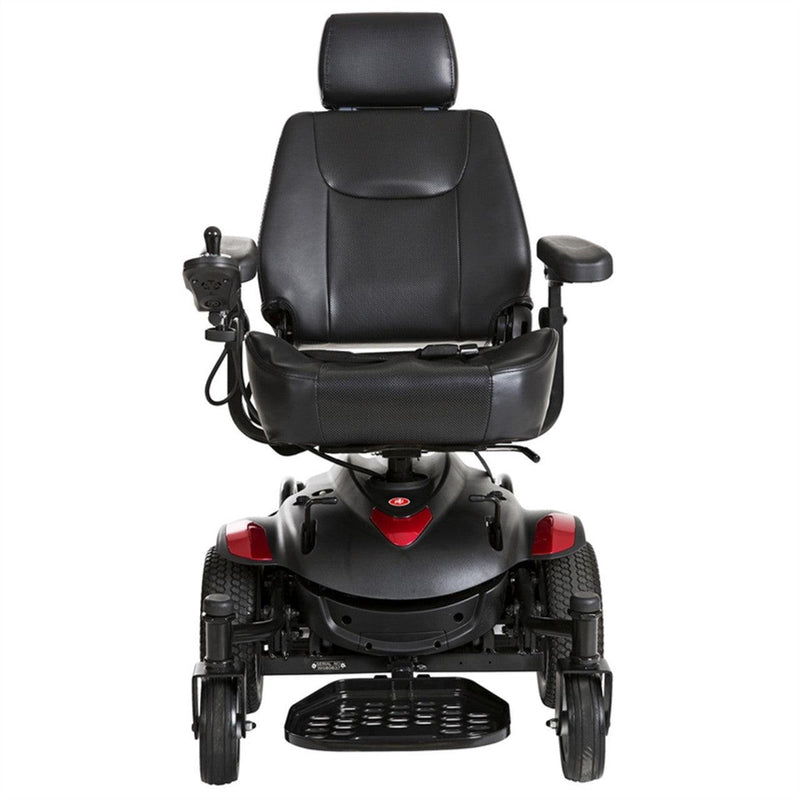

Drive Medical Titan AXS Mid-Wheel Power Wheelchair, 18"x18" Captain Seat

por Drive Medical

Description

Description

Drive Medical Titan AXS Mid-Wheel Power Wheelchair, 18"x18" Captain Seat

Features:

Captain’s seat, available in 7 different width and depth combinations, is height adjustable, reclines, swivels in 45° increments, and has a height adjustable headrest
Padded, contoured armrests with height, width and angle adjustment
Adjustable length controller mount
Interchangeable color panels in red and blue included
Flip-up footplate with height, depth and angle adjustment
Positioning belt included
Programmable controller with Bluetooth electronics for easy trouble-shooting and service
Flat-free, non-marking tires
Easy freewheel operation

Specifications:

Back Height	18"
Base Weight	87 lbs.
Batteries (pair)	12V x 33AH
Battery Charger	4A
Battery Weight (pair)	44 lbs.
Brakes	Electromagnetic
Caster Wheels	6" x 2"
Controller	Dynamic Linx 40A
Drive Wheels	10" x 3"
Estimated Range	19 miles
Freewheel Mode	Yes
Ground Clearance	2.5"
Max Climbing Angle	6°
Motor	320W x 4600RPM
Overall Dimensions	39.25" (L) x 23.5" (W) x 44" (H)
Seat Dimensions	16" \| 18" \| 20" \| 22"
Seat To Floor Height	20.75" \| 21.75"
Seat Weight	40 lbs.
Tires	Flat Free
Top Speed	4 mph
Total Weight (excl. hand control)	171 lbs.
Turning Radius	20"
Warranty on Batteries	12 Months
Warranty on Electronics	24 Months
Warranty on Frame	Limited Lifetime
Weight Capacity	300 lbs
Weight Capacity (13046 \| 13046-HD)	300 lbs.

Downloads:

Download PDF Download Catalog Page

Powerchair Accessories:

ELR Bracket Item# AE2500

Cane/Crutch Holder Item# SF8030

ELR Set Item# LK3JELR

Oxygen Tank Holder Item# SF8010

Swing-Away Joystick Item# AA4100
