Ram BP50 Brushless Micromotor Sets

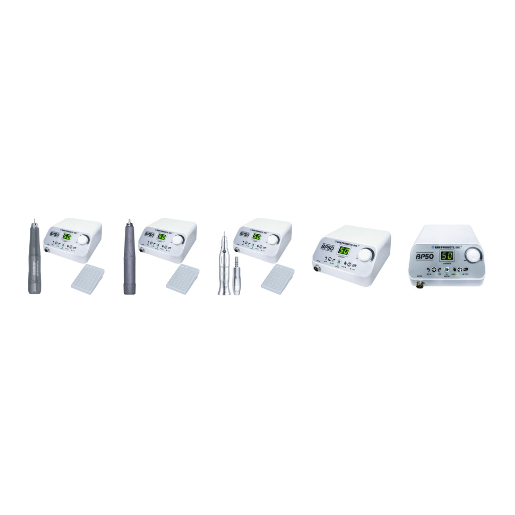

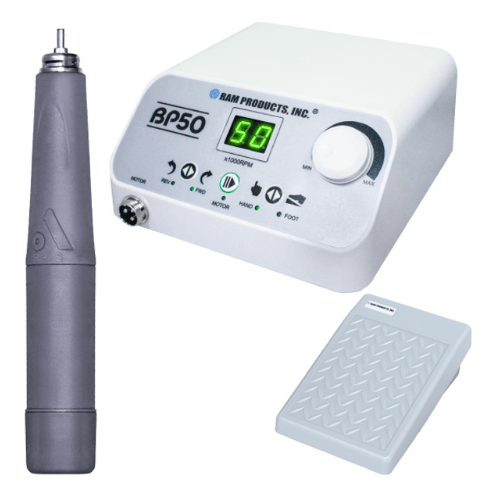

- BP50 Lab Brushless Micromotor Set-3/32" with Variable Pedal
- BP50 Slim Brushless Micromotor Set-3/32" with Variable Pedal
- BP50 E-Type Motor Set Straight Nose Cone with Variable Pedal
Brushless Micromotor features high torque and pure power technology which increases the comfort and productivity of its user by effort-free performance. Brushless features a unique motor design which is totally sealed along with a powerful magnet motor shaft in a sealed motor case that virtually eliminates noise and vibrations. Brushless Motor Technology is unique to every brand and RAM PRODUCTS is proud to break the price barrier, making brushless more affordable.
BP50 Slim Handpiece is 20% lighter weight offering superior comfort while only 10% less torque and still 3 times the torque of brush type motors. Don’t be fooled by the slim front end as it has the same exact spindle and bearings – only a slightly different motor. BP50 Slim combines the best of brushless power and comfort in size.
E-Type provides versatility and autoclavability. Versatility to attach a variety of slow speed attachments for both straight laboratory burs and disposable prophy angles. Angle attachments 1:1 for latch burs, FG burs, or prophy cups. In addition, E-Type is an industry standard and other attachments with gear decrease for prophy, or gear increase for clinical use, and specialty such as oscillating, reciprocating and sawing.
BP50 Brushless Handpiece Features:
- High Speed 0-50,000 RPM
- High Torque and High Power is Virtually Impossible to Stall
- High Performance Motor Runs Effortlessly and Silently
- More Power Means Greater Productivity and Comfort with Less Fatigue
- Convenient Flexible Coiled Cord
- Heavy Duty Bearings and Spindle Design
- Sealed Rear Motor Eliminates Dust
- No Carbon Dust or Carbon Brushes to Replace
- No Cooling Fan to Eliminate Noise and Reduce the Intake of Dust and Debris
Sealed E-Type Handpiece Features:
- 0-50,000 RPM
- 3 Pin Coiled Cord
- Accepts Various Angles and Attachments
Straight Nose Cone Handpiece Features:
- 40,000 RPM
- Metal Twist Easy Open & Close Collet Chuck
- Autoclavable
BP50 CONTROL BOX FEATURES:
- LED Functions and Display
- Forward or Reverse Rotation
- Standby Mode for Handpiece
- Hand or Foot Control
- Speed Dial Can Limit Top Speed for Safety
- Stylish and Ergonomic
VARIABLE FOOT PEDAL FEATURES:
- This foot pedal will allow the user to adjust or vary the speed
| |
Lab Handpiece |
Slim Handpiece |
Sealed E-Type/ Straight Nose Cone |
Control Box/ Foot Pedal |
| Specifications |
- Torque: 7.8Ncm
- Size: 6”x11/16”
- Net Weight: 7oz.
|
- Torque: 7.2Ncm
- Size: 6”x11/16”
- Net Weight: 5.68oz.
|
Sealed E-Type:
- Torque: 2.7 Ncm
- Size: 4.35”x1”
- Net Weight: 5.5oz.
Straight Nose Cone:
- Size: 3.4” x .8”
- Net Weight: 2.84oz.
|
Control Box:
- Rotate Speed: 1,000-50,000rpm
- Dimension: 6.8” Length x 6.4” Width x 3.2” Height
- Weight: 3.43lbs.
Foot Pedal:
- 6.75" Length x 4" Width x 2.75" Height
|
