Fast and Safe Technologyā One-shot Cephalometryā Ready in 2 clicks
3D,Ā Pano andĀ Ceph in one compact device
Compact system with two sensors automatically adjusting positioning to the desired 3D, Pano or Ceph program by simply selecting the program and patient size. The unit is perfect to install in small and big clinics due to its efficient design.
Fast and safe technology
Setting the exposure was never easier ā 3D, Pano or Ceph in just two clicks. Images are produced in seconds and patient size selection allows to optimise the dose.
One-shot cephalometry
Innovative sensor technology acquires the cephalometric image in just one second, thus preventing patient movement and increasing image quality
3DĀ Cone beam volume of 8.5 x 8.5 in just 30 seconds
Advanced 64bit technology allows you to begin diagnosis in as little as 30 seconds from start of the exposure. Mandibular canal and maxillary sinuses are clearly visible in a single exposure
Implant planning at hand
Available implant planning software allows precise preparation of your implant placement and to select from more than 60 different implant brands.
Panoramic programs for all indications
You can select from 7 panoramic programs including Sinus and TMJ. Child panoramic and partial arch scans are available to allow patient dose reduction including Left-side, Right-side and Anterior dentition.
Fully integrated system includes high-performaceĀ PCĀ withĀ OrisWin 4.4
FONA XPan 3D Plus comes with fully equipped powerful PC with pre-installed FONA OrisWin 4.4 diagnostic software ā a powerful solution for your dental practice. The latest FONA OrisWin 4.4 includes all needed visualisation, post-processing and filtering tools along with comprehensive patient management system and the possibility to extend its functionality with advanced implant planning module.

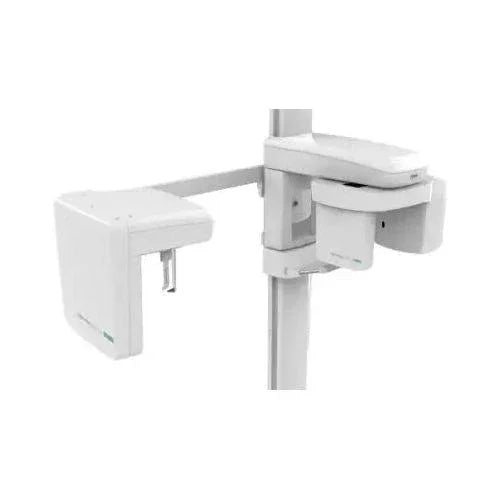

Compact design
FONA XPan 3D Plus is a compact 3-in-1 solution even with its Ceph arm. It has been specifically designed to fit in every practice. The unit is also easily accessible for children and disabled patients.
TECHNICAL SPECIFICATIONS
Ā Sensor Technology
CMOS Flat Panel and PFPT (Phosphor Flat Panel Technology)
Ā Pixel size
Ā 100 Āµm
Ā Voxel Size
160 Āµm
Ā Focal Spot
Ā 0.5 (IEC 336 / 1997)
Ā Tube Voltage
Ā 61 ā 85 kV
Ā Tube Current
Ā 4 ā 10 mA
Ā Exposure time 2D
Ā 14.2 seconds (max)
Ā Exposure time 3D
Ā 12.3 seconds (max)
Ā Exposure Time Ceph One-Shot
Ā 0.2 - 4 seconds (max)
Ā 3D Active Sensor Area
Ā 130x130 mm
Ā Ceph Image Size
Ā 240x300 mm
Ā Volume size 3D
Ā 85x85 mm (diameter x height)
Ā Image reconstruction time 3D
Ā < 10 seconds (standard reconstruction)
Ā Weight
Ā 125 kg
Ā Panoramic Programs
(1) Adult panoramic, (2) Child panoramic, (3) Left-Side Dentition, (4) Right-Side Dentition, (5) Anterior Dentition, (6) TMJ in normal occlusion and fully open, (7) Frontal view of Maxillary Sinus
Ā 3D Programs
(8) Complete dentition, (9) Left TMJ, (10) Right TMJ
