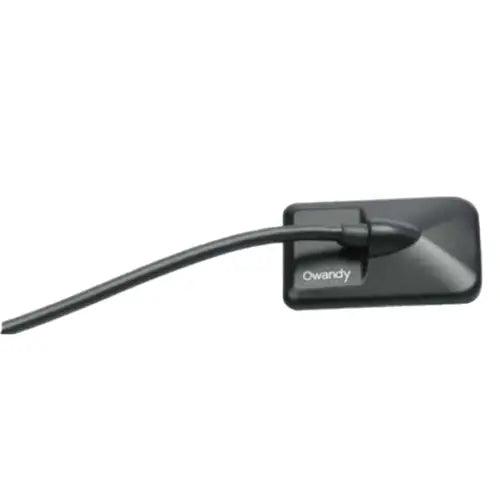

Atraumatic & ergonomic The rounded off edges and bevelled sides make the Opteo the perfect response to your handling and patient comfort requirements. In addition to this, the thickness of the sensor and the diameter of the cable have been reduced to a minimum. The flexibility of the cable and the fact it is positioned high on the sensor guarantee easy positioning in the mouth: there is no risk of cable rupture, the comfort in the mouth is ideal.

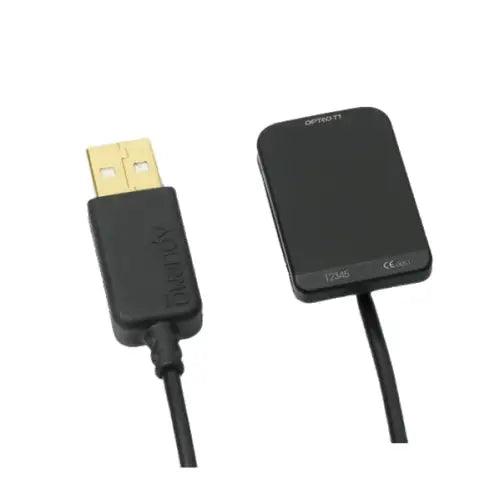

Simple & automatic No more cumbersome boxes... The Opteo’s direct USB connection makes its use (with single and multiple station) both simple and intuitive. The three meter cable enables you to connect to your computer no matter what the layout of your office. The unique automatic wake-up system of the sensor reduces the number of steps to be followed to take an x-ray: the capture of a quality image based on the x-ray emissions is also guaranteed.
High-definition & precision The direct USB connection guarantees instantaneous X-ray image capture. The high-definition (20pl/mm) associated to 14 bits grey levels, afford excellent legibility of the x-rays: the images are clear, bright and contrasted. The large active surface area of the sensor offers an optimum format for the x-ray image. Your diagnosis is therefore accurate, quick and reliable.
Opteo is 100% integrated with Quickvision. You can therefore save your images directly in the dental plan of your patient.
Fully adapted to all your clinical practices The Opteo is available in two sizes: Size 1 (T1) and size 2 (T2) in order to suit all your practices (retroalveolar, posterior, bitewing etc.). It can be used in endodontics, parodontics, prosthetic surgery and implants, as well as for cavity diagnosis.
Moreover, it is completely watertight, giving you complete flexibility in your choice of disinfection method: immersion, spraying etc.
Reliable & robust The Opteo sensor marries very high image resolution with increased equipment reliability. It includes a CMOS chip, fibre optics, scintillator and a shock absorption system. The gold-plated USB connector ensures rapid transmission of the signals and excellent corrosion resistance. The cycle life of your system is also greatly enhanced.
TECHNICAL SPECIFICATIONS
Sensor technology: CMOS
Outer dimensions of the sensor (length x width x thickness):
39 x 25 x 5 mm (T1)
43 x 31 x 5 mm (T2)
Sensitive surface:
30 x 20 mm (600 mm2) - (T1)
34 x 26 mm (900 mm2) - (T2)
Surface in pixels:
1500 x 1000 pixels (T1)
1700 x 1300 pixels (T2)
Sensor resolution: > 20 pl/mm (T1 and T2)
Sensor cable length: 3 m
Grey levels: 14 bits (16384 grey levels)
Connetion: Standard USB: USB 2.0 High-Speed (480Mbit/s) and USB 3.0.
