Ray Foster Cyclone Dust Collector (CDC1 / CDC2)

Ray Foster CDC1 Cyclone Dust Collector

• CDC1 Cyclone Dust Collector with 2-1/2" X 6' Hose
• CDC2 Deluxe Cyclone Dust Collector with HoseFoot Switch, & Cart

The Ray Foster Cyclone Dust Collector is a powerful and efficient dust collector for use in the dental laboratory. Designed for trouble-free performance and heavy duty operation. Quiet, portable and compact, makes it ideal for under the counter operation.

• Very quiet 59db noise level.
• One HP motor, 112 cubic feet per minute (CFM) suction power
• Easy to change, economical disposable paper primary filter. Retains 3 micron and larger particles
• Permanent cloth secondary filter for retention of the finest dust particles.
• Shipped complete with (1) 6' x 2-1/2" ID hose and (4) extra disposable paper dust bags.
• Available with optional foot switch or variable speed remote control box.
• Uses 1 1/2, 2 1/2 or 3 ID hose for adaptability to nearly every dust collection device.

• Unit size 12" x 12" x 16.5" high
• 35 lbs. net weight, 42 lbs. shipping weight
• 115 volt standard/230 volt, 50/60 Hz optional for export

The Ray Foster Cyclone Dust Collector is a powerful and efficient dust collector for use in the dental laboratory, designed for trouble-free performance and heavy-duty operation. Quiet, portable and compact, the dust collector is ideal for under-the-counter operation.

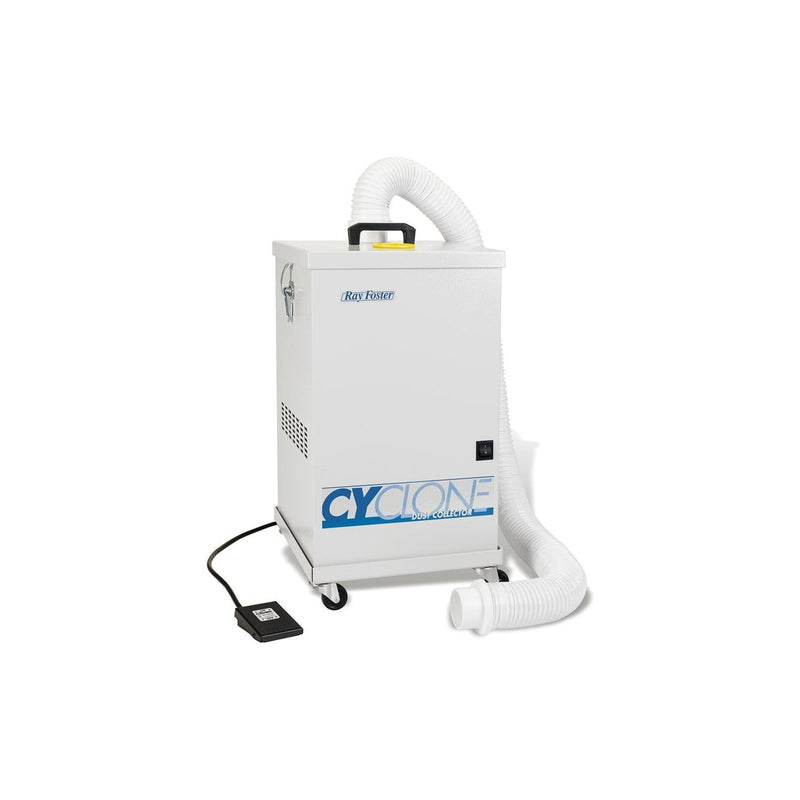

Model CDC2: Deluxe Cyclone Dust Collector

The Deluxe Cyclone Dust Collector features a two stage, ultra-quiet, by-pass motor suitable for use with abrasive blasters, and includes a remote foot switch and mobile cart.

• Unit size 12” x 12” x 19.5” high
• 115 volt, 60 Hz standard
• 230 volt, 50/60 Hz optional for export
• 42 lbs. net weight, 50 lbs. shipping weight
