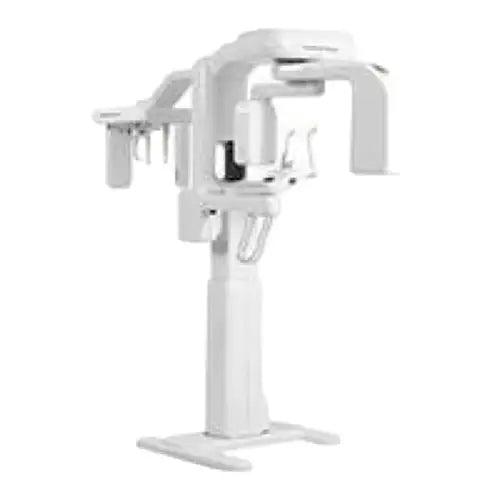

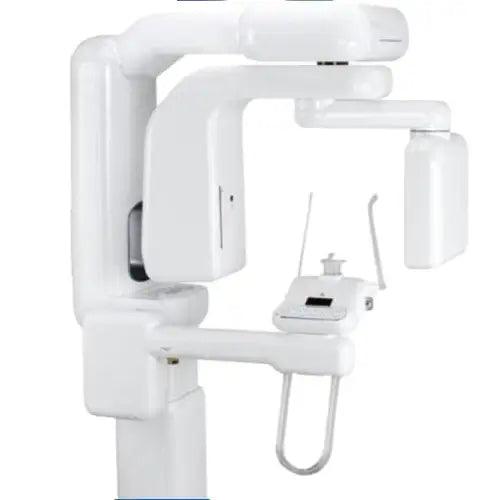

Suni Pan Q3D CBCT 3D Imaging System 400-1419

Suni Pan Q3D CBCT 3D Imaging System 400-1419

• CMOS Technology
• Multi-Focus Function
• Multiple Exposure Programs

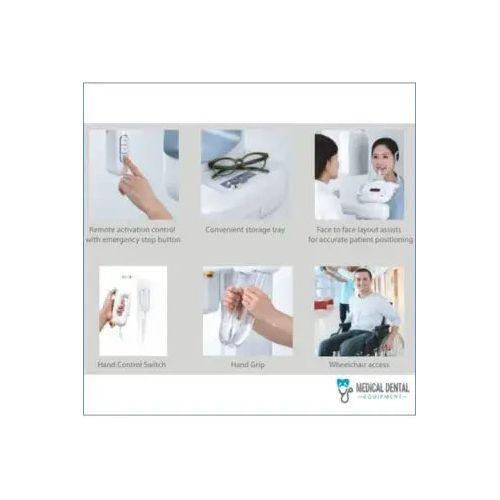

• Face to Face Positioning
• Voice Prompting
• Focal Spot 0.5mm
• Short Ceph Arm

Combines

Combines 3D CT, Panoramic, Cephalometric

• 10+ FOV Selection
• Some Presets include: 4x5, 7x7, 8x8, 16x8, 14x14
• 7.7 sec Fast Scan for CBCT
• 4 sec Fast Scan for Ceph
• Dedicated sensor for each mode
• Pan/Ceph/3D CBCT

Automated sensor switching for each scanning mode

Auto-switching system positions the appropriate sensor without manual intervention.

3D

3D CT High Resolution Computed Tomography Technology

Clearly dened images in three dimensions provide users with accurate diagnostic information

Fast scan mode

Scanning times as low as 7.7 seconds reduce dose, motion artifacts and image distortion

Resolution

Feature

Auto-stitching technology

The wide high denition images can be enhanced by auto-stitching technology

Exposure Programs

• Suni Q3D supports multiple exposure programs, covering all of your diagnostic needs
• Standard panoramic
• Orthogonal panoramic
• Sinus PA / Sinus lateral midsagittal
• X-ray segment
• Super Bitewings
• TMJ lateral double

Exposure Programs

• Q3D Ceph supports various exposure programs to fulll all diagnostic needs
• Lateral
• AP
• Water’s view
• Submento vertex
• Carpus

Q3D IMAGING SOFTWARE

Clearly dened 3D images and feature-rich tools that provide accurate diagnostic information for comprehensive treatment planning

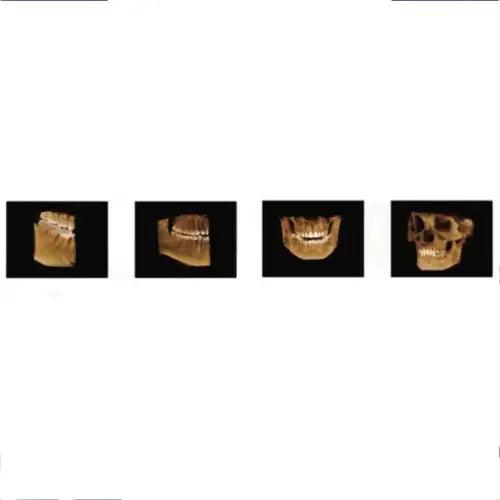

3D Volume Rendering

Various volume rendering options such as Gray, X-ray, MIP to provide 3D image visualization

MPR (Multi-Planar Formatting)

MPR mode provides three plain views (axial, coronal and sagittal) on one screen

Dental Reformatting

Using panoramic, cross-sectional, and longitudinal 2D view, you can plan your ‘perfect’ implant positioning

Curved MPR

Reconstruct sectional images from Panoramic, Cross-sectional, Longitudinal

Image Color-mapping

Color mapping increases the visibility of lesions

CDSee

Viewer Software - Export to CD/DVD

Dental Crop

Function generates FMX images from a panoramic image

Measuring tools

Multiple ease of use tools including distance, angle and positioning

Implant planning

Feature-rich tools provide easy to use diagnostic functionality including - nerve canal mapping, measurements, bone density determination for implant planning Implant planning Support for DICOM 3.0 and compatibility

STL Export

Convert and export DICOM volume data in STL format for usage in 3D printers and models - intraoral scanners

Cephalometric
