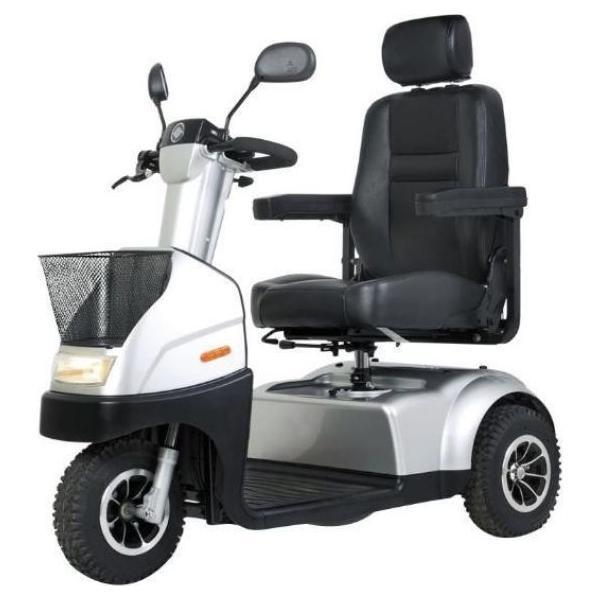

Afiscooter Breeze C3 Mid Size 3 Wheel ScooterÂ
AFISCOOTER C as your electrically powered scooter. AFISCOOTER C is a scooter for elderly and disabled persons, and for fun and sport. Scooter classification: Class B in accordance with EN12184. AFISCOOTER C is designed for a maximum occupant mass of up to 135kg (300 lbs, 3W) / 150kg (330 lbs, 4W). AFISCOOTER C is designed for elderly and disabled persons. There is a certain level of motoric capability, visual ability and cognitive ability required in order to operate the scooter. It is recommended to consult with your physician to evaluate your ability to operate the scooter. AFISCOOTER C is an indoor & outdoor scooter designed to work in normal environmental conditions from very cold temperatures (-30ÂșC/-22ÂșF) to very hot temperatures (+45ÂșC/+113ÂșF). AFISCOOTER C will operate in light rain showers, but extended use is not recommended in heavy rain or snow. AFISCOOTER C is easy to operate. The relatively large wheels allow the user to drive on unpaved roads, over moderately rough terrain and over obstacles as high as 5â (12 cm). Refer to Appendix A: Specification Sheet (Page 30) for the required tyre pressure. AFISCOOTER C maximum safe slope is: 9Âș (16%). Do not attempt to climb\descend slopes that steeper than the scooters limitation. The braking system stops the vehicle smoothly and within a short distance after the throttle control lever is released. AFISCOOTER C is equipped with both front and rear shock absorbers to give the user a comfortable and smooth drive, even when using the vehicle on moderately rough roads. A standard handbrake is also provided for backup. The seat is spacious and comfortable, and can be rotated for easy access (standard seats). It can be adjusted forward and backward. The seat can also be adjusted up and down by a technician. All controls are conveniently mounted on the tiller and are simple to operate. Under normal conditions, AFISCOOTER C can travel approximately 40 km (27 miles) before the batteries require recharging. The distance will be reduced if the scooter is used frequently on slopes, rough ground or to climb kerbs etc. After reading through this entire manual and before using AFISCOOTER C, please perform a brief visual check of the scooter to make sure that there is no visible damage. If you have any questions or concerns, contact your dealer.
- Overall Length:130cm (51")
- Overall Width - Standard Wheels: 67cm (26")
- Overall Height - Folded: 80cm (31")
- Overall Height - No Canopy: 128cm (50")
- Overall Height - with Canopy: 163cm (65")
- Ground Clearance: 10cm (4")
- Weight - No Batteries: 75kg (165lb)
- Weight (+) Canopy: +12kg (26lb)
- Weight Capacity Including Driver: 135kg (297lb)
- Travel Range (+) Batteries: 40-45km (25-28m)
- Maximum Speed: 10-15Kph (6.2-9.3mph)*
- Max Climbing Angle: 9Âș (16%)
- Turning Radius: 128cm (50")
- Seating Width: 46cm (18")
- Tire Type: Pneumatic (1.7bar)
- Tire Size - Front: 4.10/3.50-6"
- Tire Size - Rear: 4.10/3.50-6"
- Battery Type x2: 12V 85Ah, Max.
- Rear Wheel Drive Power Unit: 24V DC motor | 950W
- Controller Type: SD 120A
- Charger Type: 8Amp

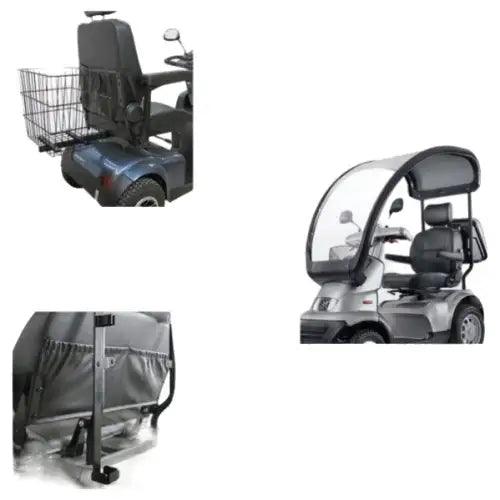

- Options/Accessories
- Canopy | Rear lock box | Wide seats 20" Crutch Holder
