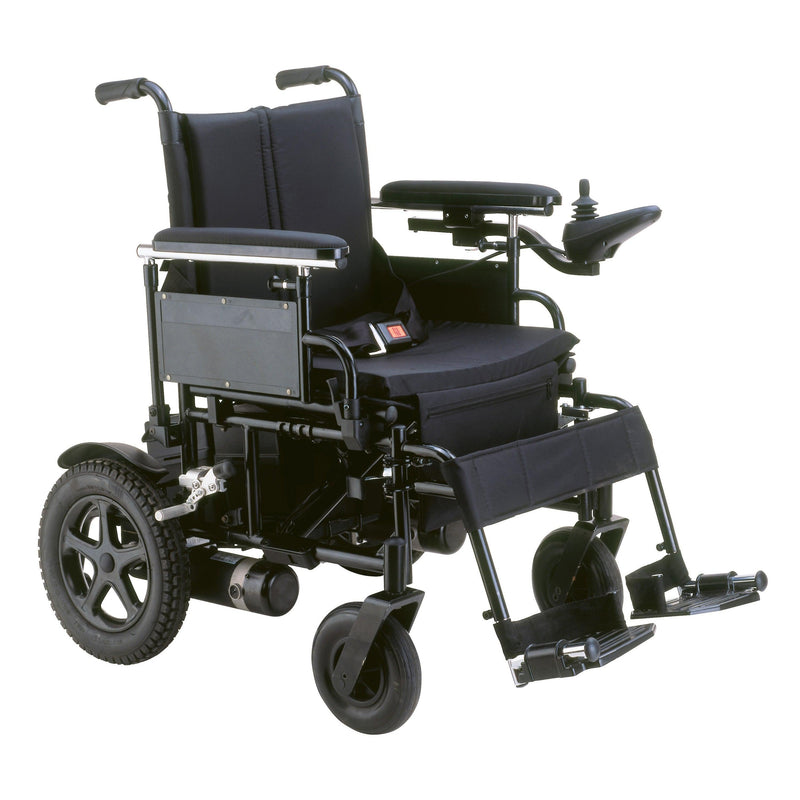

Drive Medical Cirrus Plus HD

by Drive Medical
$2,650.00 - $2,650.00
$2,650.00
$3,100.50
$3,100.50 - $3,100.50
$3,100.50

Do you have questions about this product?

Availability and delivery time?

Be the first to ask a question about this.

Ask a Question

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare

Drive Medical Cirrus Plus HD

Features:

  • Foldable, lightweight frame for easy portability (Figure A)
  • Steel double cross-brace frame
  • Adjustable-tension back upholstery
  • Armrests are padded, adjustable and removable
  • Adjustable-length controller mount
  • Adjustable-tension back upholstery
  • Swing-away footrests with heel loops
  • Optional elevating leg rests (Item #CPELR) sold separately
  • Optional 2" seat depth extension (Model #STDS1818N) sold separately
  • Positioning belt included
  • Padded back upholstery with storage pouch and cushioned seat
  • Programmable controller
  • Flat-free, non-marking tires
  • Easy free-wheel operation
  • Manual wheel locks
  • General foam seat cushion included
  • Anti-tip wheels



  • Specification:
Base Weight 100 lbs. (22"), 105 lbs. (24")
Batteries (pair) 12V x 36AH (22"), 12V x 50AH (24")
Battery Weight (pair) 56 lbs. (22"), 66 lbs. (24")
Brakes Electromagnetic
Caster Wheels 8" x 2" Solid
Charger 4A Offboard
Climbing Angle 6°
Controller PG VSi 50A
Dimensions 42.5" x 29.5" (22"), 46" x 31" (24")
Drive Wheels 12.5" x 2.25" Flat-free
Floor to Seat Height 18.5"
Ground Clearance 4"
HCPCS K0824
Maximum Range 15 miles
Motors (2) 24V x 320W x 4600 rpm
Seat Dimensions 22" x 16", 24" x 19.5"
Top Speed 5 mph
Total Weight (excl. hand control) 156 lbs. (22"), 159 lbs. (24")
Turning Radius 35"
Warranty on Batteries 12 Months
Warranty on Electronic Controller/Drive Train Components 24 Months
Warranty on Frame Lifetime
Weight Capacity 450 lbs
Weight Capacity (13046 | 13046-HD) 400 lbs. (22"), 450 lbs. (24")
