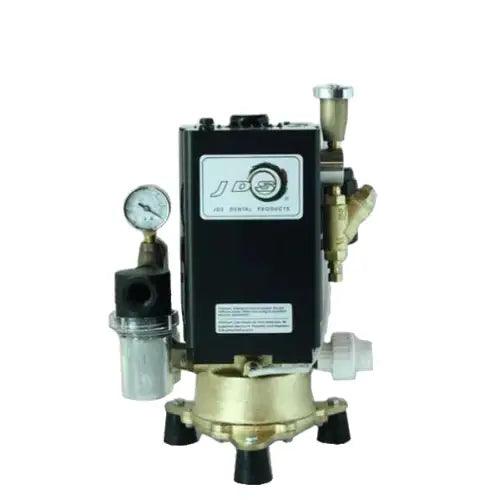

JDS WET RING SINGLE VACUUM PUMP (JVBS20)

JDS WET RING SINGLE VACUUM PUMP (JVBS20)

• Showcasing our most defined line of wet-ring vacuums, JDS presents the Vortex Series Wet Ring vacuum pumps. With its debut in 2004, the Vortex Series has been redesigned for maximum performance and quality, providing years of dependable service.

• Equipped with an impressive 3 year warranty, along with a minimal maintenance level, built to last in continuous operation, chemical resistant marine bronze construction, and reduced noise level, all for your comfort in your office.

• Key features:
• Equipped with motors from Bluffton Motor Works, reliability and trouble free operation comes first
• ETL listed, UL #60601-1 Compliant: Standard for safety medical electrical equipment
• Certified to CSA C22.2 #601.1: Medical electrical equipment
• Water recycler saves 70% on water consumption
• Dual voltage for 1 HP and 1.5 HP models, single voltage for 2 HP models

• Model Number: JVBS20
• Total HP: 2
• User Capacity: 4
• Voltage: 208-230
• Line Frequency: 60 Hz
• Total Amps: 13.4
• Size (H x W x D):19 x 12 x 12
• Shipping Weight: 75 lbs

R denotes Water Recycler (0.19 GPM):

• Model Number: JVBS20R
• Total HP: 2
• User Capacity: 4
• Voltage: 208-230
• Line Frequency: 60 Hz
• Total Amps:13.4
• Size (H x W x D):19 x 12 x 12
• Shipping Weight: 77 lbs

S denotes Air/Water Separator:

• Model Number: JVBS20S
• Total HP: 2
• User Capacity: 4
• Voltage: 208-230
• Line Frequency: 60 Hz
• Total Amps: 13.4
• Size (H x W x D): 19x 12 x 12
• Shipping Weight: 77 lbs

R denotes Water Recycler (0.19 GPM) / S denotes Air/Water Separator:

• Model Number: JVBS20RS
• Total HP: 2
• User Capacity: 4
• Voltage: 208-230
• Line Frequency: 60 Hz
• Total Amps: 13.4
• Size (H x W x D):19 x 12 x 12
• Shipping Weight: 79 lbs
