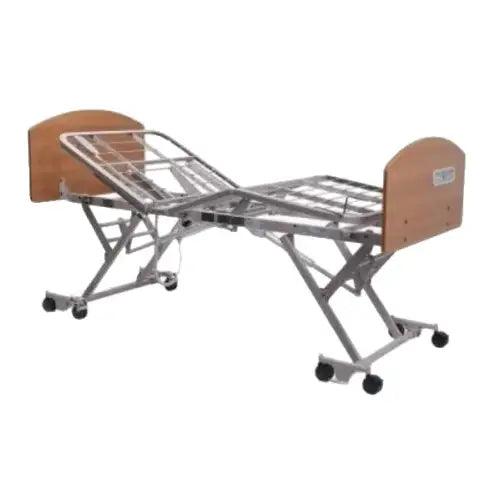

Matrix4100 With Advanced Positioning - Matrix 4100 35 Sleep Deck Width 4 Locking Casters Advanced Positioning MAP49174 Hospital Bed

Matrix4100 Hospital Bed With Advanced Positioning -

by By Graham Field
$1,331.00 - $1,331.00
$1,331.00
$1,557.27
$1,557.27 - $1,557.27
$1,557.27

Do you have questions about this product?

Availability and delivery time?

Be the first to ask a question about this.

Ask a Question

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare

Matrix4100 With Advanced Positioning - Matrix 4100 35" Sleep Deck Width, 4 Locking Casters Advanced Positioning MAP49174

GFD-MAP49174

OTE: Basic American Medical Products beds are for INSTITUTIONAL USE ONLY. Orders will not be accepted for delivery to a residential address.

Smart Technology
ā€¢ Digital Electronics enable ā€˜plug and playā€™ capability to add features at any time
o Advanced Positioning
o USB Power Supply for cell phone charging
o Underbed Light for resident safety ā€¢ Interchangeable Electronics
ā€¢ 450 LB Safe Work LoadĀ
ā€¢ Travel Range:Ā  8.95ā€-27ā€

Key Features:
ā€¢ Energy-saving electronics consume up to 66% less power than electronics using a transformer
ā€¢ Sealed ball bearings in the hi-lo joints provide maintenance-free continuous, silent operation
ā€¢Ā US Patent awarded hi-lo systemĀ (mechanism inside of bottom of mainframe tubes reduces the chance of fluids getting inside and harboring bacteria)
ā€¢ Industry-leading electronics ensure lower cost of Ownership
ā€¢ Tool-less assembly
ā€¢ SilverSolutions within the powder coating provides antimicrobial surface protection and deters the growth of stain and odor-causing bacteria

Available with:
ā€¢ Embedded staff control with safety-inspired two-stage lockouts
ā€¢ Advanced Positioning, including chair and Trendeleburg/Reverse Trendelenburg
ā€¢ Optional hand pendant to control Trendelenburg/Reverse Trendelenburg
ā€¢ Intuitive 2-pedal locking system - centrally located, easily visible from a distance to ensure the bed is locked, and is accessible at all heights and widths ā€“ even the lowest position
ā€¢ 4-locking casters
ā€¢ 35" or 42" sleep deckĀ Ā
ā€¢ Underbed Light clearly illuminates where the resident gets in and out of the bed
ā€¢ USB Power Supply eliminates using a separate wall outlet for cell phone and tablet charging
Matrix4100 With Advanced Positioning - Matrix 4100 35 Sleep Deck Width, 4 Locking Casters Advanced
  • Overall Bed Length (with boards and wallsaver) 76" 81.2" 81.2" 80" 83.1" 83.1" Sleep Deck Width 35" 42"
  • Bed Width Including Boards 36" 42"
  • Maximum Height (floor to top of mattress support deck) 27" 27"
  • Minimum Height (floor to top of mattress support deck) 8.95" 8.95"
  • Maximum Head / Back Deck Angle 68Ā° 68Ā°
  • Maximum Knee / Foot Deck Angle 25Ā° 25Ā°
  • Maximum Trendelenburg / Reverse Trendelenburg Angle 12Ā° 12Ā°
  • Maximum Safe Working Load WITH WEIGHT EVENLY DISTRIBUTED - includes bedding, resident / patient, 450 lb 450 lb support surface, and accessories (204.1 kg) (204.1 kg)
  • Bed Mass (standard deck, without assist devices 150 lb 157 lb or boards) (68.0 kg) (71.2 kg)

Warranty: Main Frame and welds:............................................... Fifteen years Control Box and Actuator Motors:.............................. Four years Hand Control Pendant, Staff Control, and Cabling:.... Three years Headboard and Footboard:........................................ One year All other durable components not listed above: ........ Two years
