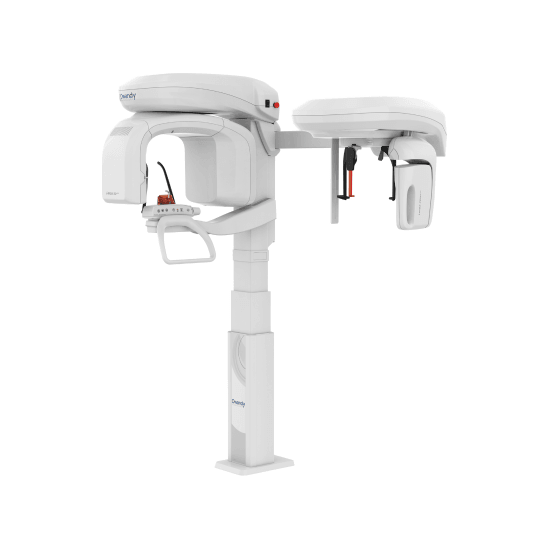

Owandy I-MAX Touch 3D Cone Beam + Cephalometric and Panoramic X Ray 9304301011
Owandy I-MAX Touch 3D Cone Beam + Cephalometric and Panoramic X Ray
We Offer Free shipping & Free Installation on this Item up to 250 Miles from Miami Florida.
Integrated touch screen for immediate image display
Software ergonomics specially designed for intuitive, touch-screen access to functions. Program examinations via the graphic interface and watch image acquisition in real time.
HD images
The CCD sensor generates high-contrast HD images that allow the dentist to make an accurate diagnosis within seconds.
Complete programs
14 programs available in panoramic mode, including standard, hemi-panoramic, bitewing, sinus & ATM. Choice of 5 formats for the cephalometry module, including frontal, lateral & carpus
Ethernet or stand-alone
The I-Max Touch can be controlled from any PC or via a network. Images can be stored to a USB stick from the control console.
A mobile sensor. Flexible and affordable cephalometry
Choose between panoramic and cephalometric. Choose between single and dual sensors. The sensor can be easily moved using the ergonomic handle.
Specification
- HF generator:
- Constant potential
- Image receptor:
- 0,5 EN60336
- Total min. filtration:
- 2,5 mm AI équivalent
- Anode voltage:
- 60 - 86 kV
- Anode current:
- 6 - 10 mA PAN, 6 - 12 mA CEPH
- Exposure time:
- PAN 13,8 s / CEPH 4,5 s
- Column :
- Powered telescopic
- SID (Source to Image Distance) :
- 500 mm PAN / 1650 mm CEPH
- Digital sensor:
- CCD HD + Optical fibre
- CCD resolution:
- 10,4 lp/mm
- Connection :
- Direct PC acquisition (network cable) and/or integrated touch screen
- Archiving :
- PC and/or USB stick
- Power supply:
- 100-120 V, 220-240 V, 50/60Hz
- Amperage:
- 8 A
