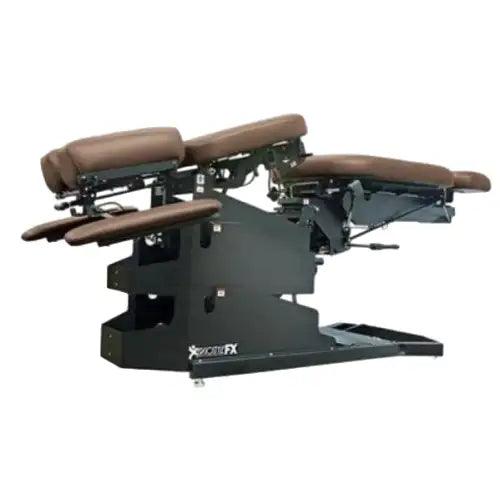

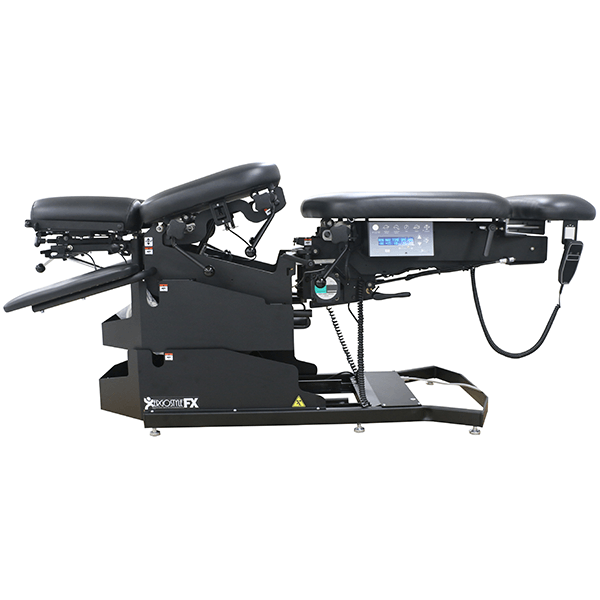

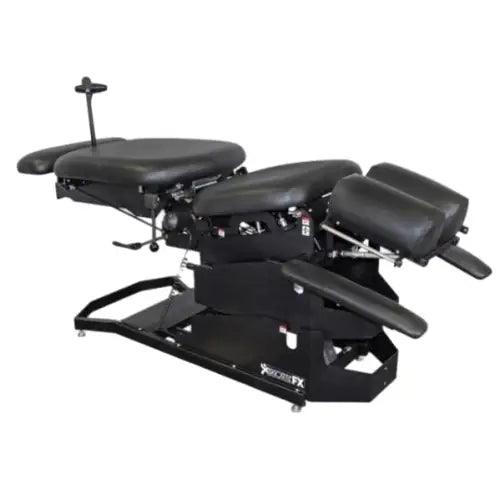

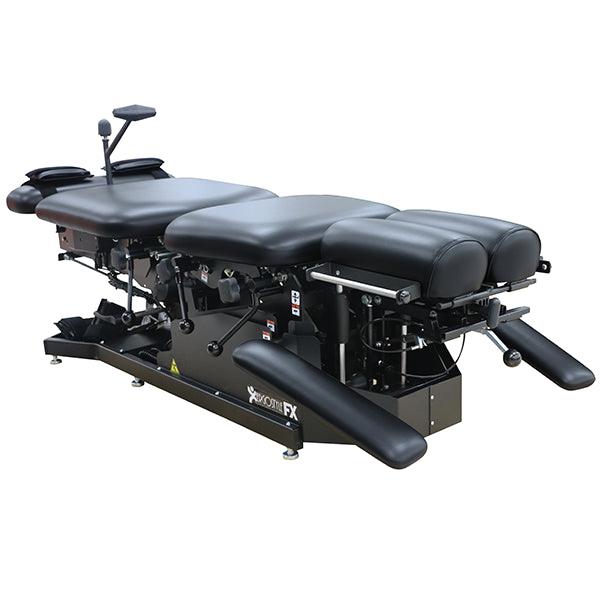

Pivotal Health Solutions ErgoStyle FX Adjusting Table ES5820
Prices listed for US customers only and all international customers need to contact our authorized distributors partners to obtain quotes.
The design of our ErgoStyle™ FX Flexion Distraction table offers full, ultra-smooth counterbalanced flexion, distraction or circumduction, effortlessly meeting the core needs of your practice. Manual flexion/distraction is built right in, with infinitely variable electric spring tension so you can move the caudal section in any direction with just the touch of a finger. For added flexibility, the table also quietly elevates from its lowest height of 20" to its full height of 32”.
The fully modular design allows for upgrades now or in the future, including three drops, auto-cocking, auto flexion, headpieces, chest pieces (including long axis distraction), dual auto-cocking foot pedal, dual elevation foot pedal, dual tension foot pedal, T-bar handles and super silent air compressor options.
Table Configurations:
- ES5820 - ErgoStyle FX - 120V
- ES5821 - ErgoStyle FX - 230V
- ES5822 - ErgoStyle FX with Auto-Cocking - 120V
- ES5823 - ErgoStyle FX with Auto-Cocking - 230V
Standard Features:
- Electric elevation from 20"-32"
- Single foot pedal for elevation
- Expanding covers over lifting mechanism
- Tilting headpiece with adjustable sewn face cushions
- 22.5" wide seamless cushions with multi-density foam
- Manual flexion/distraction (Flexion: 15°; Extension: 12°; Side Bending: 30° total)
- Single tension foot pedal (manual flexion only)
- Locking 8" extending ankle rest with ankle cuffs
- Stationary chest
- Paper roll holder and cutter
- Durable powder-coated finish
- Single auto-cocking foot pedal included with auto-cocking drops
- ADA compliant
Specifications:
- Weight capacity: 400 lbs.
- Overall dimensions: 70”L x 28”W x 20-32”H
- Extended maximum length: 78"L
- Cushion width: 22.5"W
- Rated voltage: 120V/230V
- Rated frequency: 60Hz/50Hz
- Fuses: 1.6 Amp
- Current: 2.7 Amp
- Duty cycle: Intermittent-Max: 1 Minute On, 9 Minutes Off
- Product weight: 400 lbs.
- Shipping weight: 470 lbs. (90”L x 32”W x 32”H)
Table Options
Flexion Options:
- ES58491 - Ergostyle FX Auto Flexion with Digital Interface Control
- ES58494 - Long Axis Distraction - 120V (with Manual Flexion)
- ES58495 - Long Axis Distraction - 120V (with Auto Flexion)
- ES58496 - Long Axis Distraction - 230V (with Manual Flexion)
- ES58497 - Long Axis Distraction - 230V (with Auto Flexion)
Head Piece Options:
- ES95002 - Tilt, Forward Drop, Toggle Drop, Adjustable Face Cushions
- ES95003 - Tilt, Elevation, Adjustable Face Cushions
- ES95004 - Tilt, Elevation, Forward Drop, Toggle Drop, Adjustable Face Cushions
- ES95010 - Tilt, Cervical Distraction, Adjustable Face Cushions
- ES95011 - Tilt, Forward Drop, Toggle Drop, Cervical Distraction, Adjustable Cushions
- ES95012 - Tilt, Elevation, Forward Drop, Toggle Drop, Cervical Distraction, Adjustable Cushions
- ES95013 - Tilt, Elevation, Cervical Distraction, Adjustable Face Cushions
- E4423 - 14° Lateral Flexion (available on any of the headpieces listed above)
Chest Piece Options:
- ES58359 - Breakaway, Elevating Chest with Single Side Control
- ES58362 - Breakaway, Elevating Chest with Dual Side Control
Drop Options:
- ES58353 - Thoracic Manual Drop
- ES58354 - Lumbar Manual Drop
- ES58355 - Pelvic Manual Drop
Elevation Foot Control Options:
- 95284 - Dual Foot Pedal Elevation
Auto-Cocking Foot Control Options:
C4051 - Dual Auto-Cocking Foot Pedal
Tension Foot Control Options:
- C4053 - Dual Tension Foot Pedal
T-Bar Handle Options:
- ES58429 - Short T-Bar Handle
- ES58430 - Long T-Bar Handle
Other Options:
- E7065 - Super Silent 20 Amp Compression - 120V
- E7079 - Super Silent 20 Amp Compression - 230V
