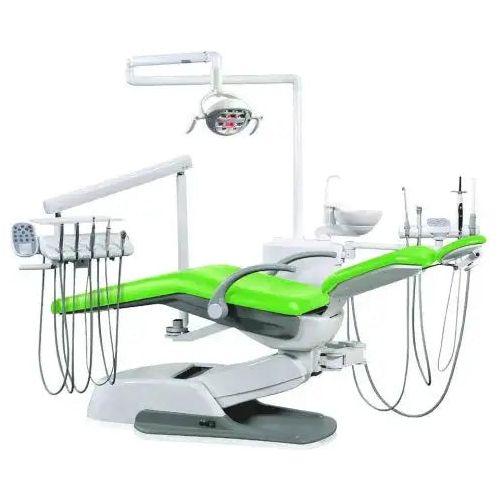

Ritter Vanguard Dental Operatory Package (Germany)

Ritter Vanguard Dental Operatory Package (Germany)

Features
• Hydraulic chair movement for fast and quiet positioning
• Ergonomic design for comfortable seating during long treatments
• Broad space for dentist‘s legs
• High-quality seamless upholstery
• Programmable chair positions, plus last “position recall”
• Auto return function:
Safety switches
If the safety switch is activated, the chair automatically goes up a few centimeters
• Trendelenburg movement: Seat and backrest movement synchronized
• 2 Foot controllers
• Left and right armrest
• Double-articulated headrest
• Chair swivel 30° left/right

Options
• Upgraded upholstery (Patient Chair and two Stools)

Delivery Syst

• Three-way syringe
• 3 outlets for turbine or air motor without light
• Tray table on top
• Pneumatic arm brake mechanism
• Up to 5 instruments
• 2 control panels
• Pneumatic switches in instrument holders
• Optional brushless motors with LED
• Optional fiber optic outlets
• Optional Scaler S type LED

Options
• Lower double tray
• Scaler S type LED
• Fiber optic outlets 5 or 6 Pin
• Motor Infinity brushless LED with Touchpad
• Motor Infinity brushless LED without Touchpad

Easy handling and efficient treatments:
According to the personal preference, two different versions are available, which allow an easy adjustment of the instruments.

Traditional Delivery System
(hanging version)

Assistant's Package

Features

• Integrated button panel
• Three-way syringe
• Up to 4 instruments
• Small an large suction hose
• Air/water syringe
• Double-articulated and adjustable arm movement

Options
• Curing light LED

Water Unit

Features
• Moveable ceramic cuspidor
• ABS Aqua Bottle System
• Connection for external suction

Options
• Vacuum Drain Kit
• Venturi Internal System water/air or air/air

Operating Light

Ritter Standard LED
• Light intensity: 8.000 to 30.000 Lux
• Colour temperature: 5.000 Kelvin
• Sensor switch – light on/off by hand movement
• Low heat emission
• Precise illumination of the working field

Ritter SunLite LED (optional)
• Light intensity: 8.000 to 50.000 Lux
• Colour temperature: 4.200 to 6.000 Kelvin
• High CRI value for particularly powerful colour rendering
• Special colour temperature control system: Improves colour contrast on soft fabrics and increases visual clarity and detail recognition
• Low heat emission
• The 10 LED sources ensure uniform and shadow-free illumination. The absence of shadows is achieved through the overlapping of a hundred individual light fields
• working light field: 2.7 x 5.5″  (at 28″ distance)
• Handles are removable and sterilisable
• Lamp can be rotated freely through 180°

Foot Controllers

Foot control for chair functions
• Large foot control pad for easy repositioning
• Manual control of chair movements
• Up/down of backrest and chair
• Rinsing position/last treatment position
• Entry/exit position
• Three programmable chair positions

Foot control for instrument functions
• Speed/power control for the active instrument
• Water on/off mode instruments
• Switch for instrument water
• Button for chip air function

Upholstery Colors

15 upholstery colors give your practice an individual touch.
