Tpc Advance Led 55bn Built-In Type Curing Light System ALED55BN

Original price $293.00 - Original price $293.00
Original price $293.00
$325.00 - $325.00
Current price $325.00

Do you have questions about this product?

Availability and delivery time?

Be the first to ask a question about this.

Ask a Question

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

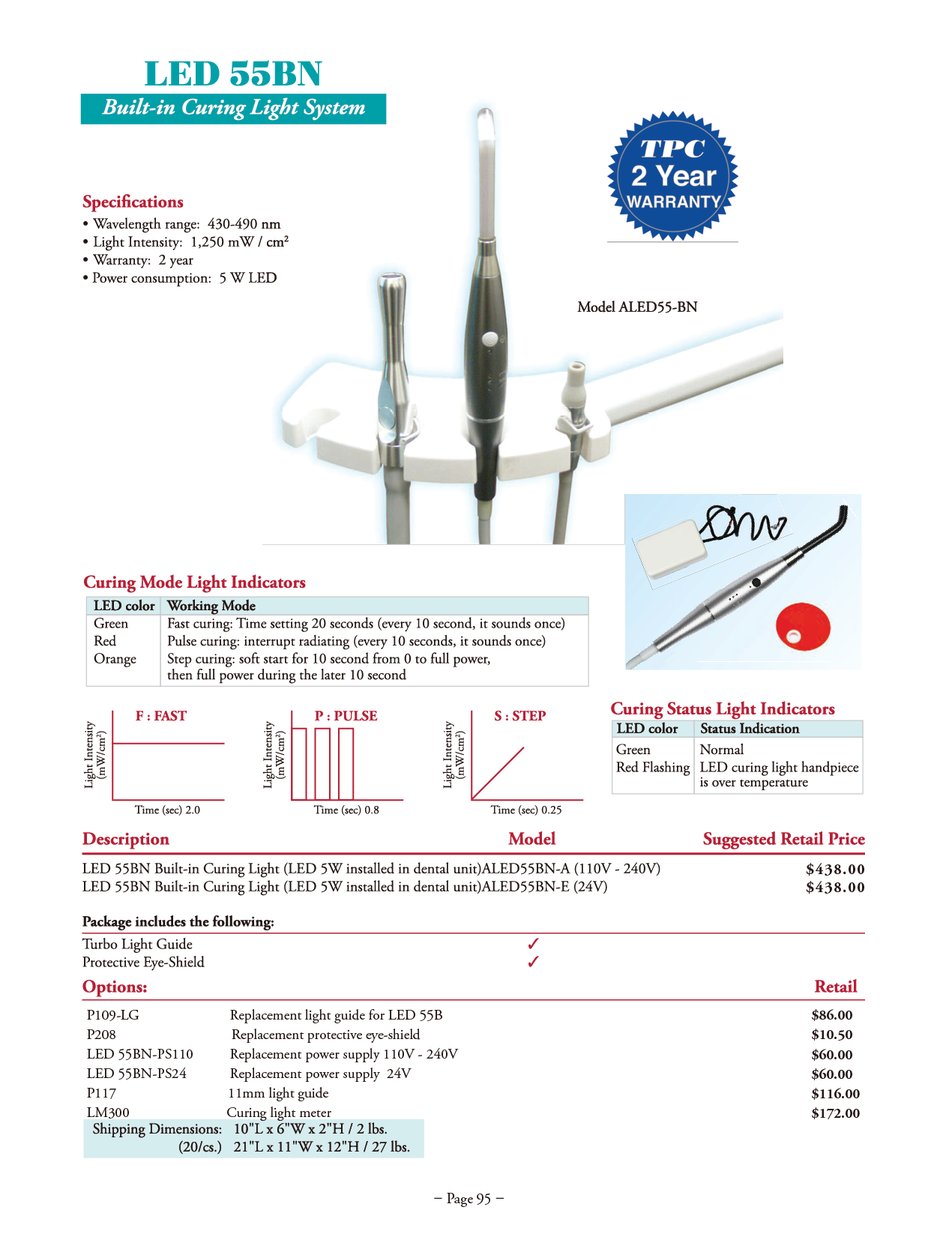

TPC Advance LED 55BN Built-in Curing Light System (LED 5W installed in Dental Unit),

Model ALED55BN (110V, 24V)

ALED55BN-A (110V - 240V)

ALED55BN-E (24V)

Package Includes: Turbo Light Guide, Protective Eye-Shield, Built-in Power Transformer, User's Manual
TPC 2 Year Warranty

  • Fast curing (green LED color): Time setting 20 seconds (every 10 seconds, it sounds once)
  • Pulse curing (red LED color): Interrupt radiating (every 10 seconds, it sounds once)
  • Step curing (orange LED color): Soft start for 10 seconds from 0 to full power, then full power during the later 10 seconds
  • Curing Status Light Indicators:
  • Green LED color – Normal
  • Red Flashing LED color – LED curing light handpiece is over temperature
  • Wavelength Range: 430-490 nm
  • Light Intensity: 1,250 mW / cm²
  • Power Consumption: 5 W LED
  • Shipping Dimensions: 10”L x 9”W x 5”H
  • Weight: 3 lb
  • P109-LG - Replacement Light Guide for LED 55B
  • P219 - Replacement Protective Eye-Shield
  • LED 55BN-PS110 - Replacement Power Supply 110 -240 V
  • LED55BN-PS24 - Replacement Power Supply 24V
  • P117 - 11mm Light Guide
  • LM300 Curing Light Meter

All returns require prior authorization. Returns must be authorized by TPC within 7 days of date received by the customer.
• Contact Customer Service for Return Authorization Number
• Returned products are subject to a 25% restocking charge
• All returned goods must have Return Authorization Number
• All returned goods must be shipped prepaid
• All authorized returns must be received by TPC in original packaging, accessories, documentation and in original condition
for credit considerations
• All outbound repair / warranty freight charges are the responsibly of the customer.
• No returns accepted after 14 days.
Special Orders:
• Special order items and custom made products are not returnable for credit
Minimum Orders:
• Orders less than $50.00 will incur an additional $5.00 handling charge.
• All drop ship orders will incur an additional $5.00 fee.

All of our products sold are guaranteed to be free from defects in workmanship and materials for one year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the TPC facility. This guarantee does not cover normal wear or stains on surface finish. The guarantee does not cover damage resulting from improper installation, misuse or accidents incurred in shipping and handling. All claims against the freight carrier must be initiated at the time the damaged items are received. The claim is the responsibility of the customer. We are improving our products on a continuous basis. We reserve the right to make modifications without the need for prior notification and are not obliged to modify previously manufactured items. Bulbs and batteries are not covered under any type of warranty.

Products: Warranty Period:
Patient Chairs 5 year limited

Delivery Units 5 year limited:
Flex Arm
Rigid Arm
Light Post
Brake assembly
Unit head frame and holder bar
PMU (excluding plastic covers- top, front, sides)
Tri Block

Covered under 2 year warranty:
2015 & 2015.2.0 Cuspidor.
Solenoid Valves & Coil / Control PCB

Covered under 1 year warranty:
Handpiece tubing
Syringe tubing
Hve & Saliva ejector tubing
Internal plumbing (only defects in workmanship)
Plastics (hangers, unit head cover, side box covers, 4 position asst holder, arm caps, j box frame and cover)
Air brake push button valve
Hve & Se valves & 3 way syringe
Block gasket diaphragm
Cuspidor bowl and frame assembly
Telescoping assistants arm

LED Operatory Lights 2 year

Seating 1 year

Curing & Bleaching Systems 1 year

Mobile Cabinets 1 year

Imaging Products 1 year

Air-Driven Handpieces 1 year

Scaling Products 1 year

Amalgamator 1 year

Extended Manufacturer Warranty (selective models):
H6000, H6005, H6025, H7005 Lubrication System 2 year
LED Curing Lights (All Models) 2 year
AdvanceCAM Intraoral Camera System(s) 2 year

Limited Manufacturer Warranty (selective models):
6 month Manufacturer Warranty (selective models) Fiber optic systems, S333, M333, QS222, QM222, ELCA760, ELS736.

Total Satisfaction Policy
If you cancel your purchase for any reason within 7 days from date of receipt, we'll refund your purchase price minus shipping costs and less a 15% re-stocking fee (excluding intraoral products). You are responsible for the cost of shipping the product back to us.
