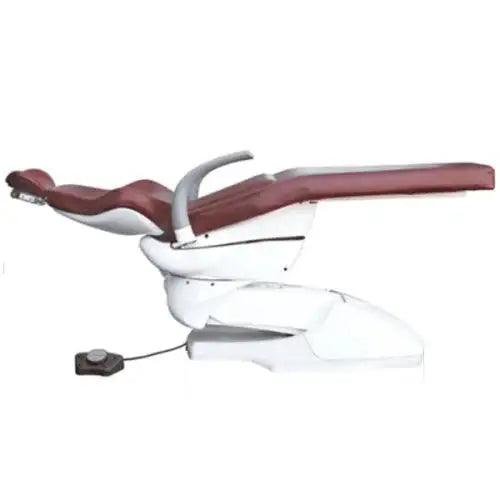

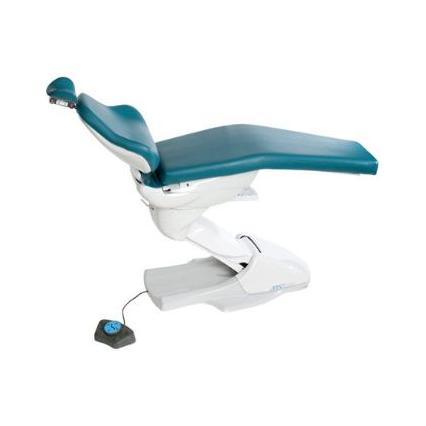

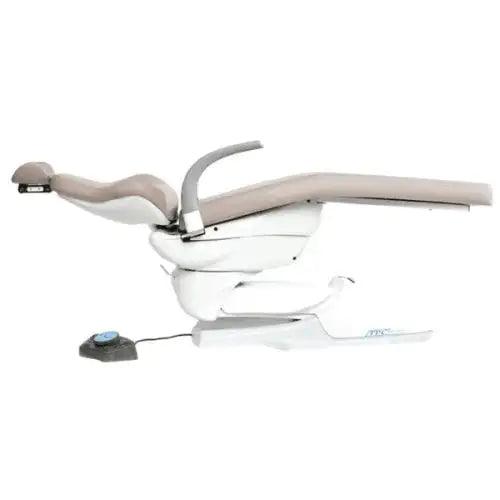

TPC Dental Mirage 1.0 Orthodontic Hydraulic Dental Chair 3000-1.0

TPC Mirage 1.0 Hydraulic Operatory Chair Model 3000-1.0

Package Includes:

• Two programmable positioning presets
• One programmable return position
• Electronic foot control with automatic return function
• Built-in fuse and surge protection
• Protective base guard
• All-metal construction
• Integrated shut-off base plate
• Dual-axis articulating headrest with height adjustment
• Locking swivel base with 60-degree rotation
• Seamless surface material
• Coordinated leg rest tilt
• Input voltage: 110V or 220V

Specifications

Lifting / Lowering Mechanism:
• Hydraulic, cantilever-type system

Initial Height / Stroke:
• 15.5” / 15”

Backrest Recline Range:
• 0° (horizontal) to 70°

Seat Tilt Range:
• 10° to 20°, synchronized with backrest

Preset Control System:
• Microcomputer control with three programmable positions
• Automatic return and last-position memory

Chair Rotation:
• 30° left / 30° right from centerline

Headrest:
• Dual-axis adjustable design

System Safety Features:
• Integrated shut-off plate under main link
• System-wide motion cancellation via control switches

Warranty:
• 5-Year Limited Warranty

Standard Features

• Synchronous backrest
• Dual-axis articulating headrest
• Cast aluminum base
• Programmable foot control
• Short pump cover

Available Options (Sold Separately)

• TP-2005 Touch Pad Control – unit head or operatory chair mounted
  3 presets, auto return, last position memory – $358.00

• TPCBRKT Post Mount Chair Bracket – $290.00

• PC-1000-DU Replacement Operatory Chair Surface – Wide Back
  Duration Vinyl – Specify Color and Product Code – $850.00

• PC-1000-VINYL-UC Upgrade: Non-Standard Operatory Chair Surface – Wide Back
  Vinyl – Specify Color and Product Code – $490.00

• PC-1000-ULTR-UC Upgrade: Ultra Leather Operatory Chair Surface – Wide Back
  Specify Color and Product Code – $760.00

• PC-1000-PR-UC Upgrade: Nauga Soft Operatory Chair Surface – Wide Back
  Specify Color and Product Code (PR50, PR49, PR47, PR40, PR37) – $300.00

• M4000-09 Magnetic Headrest Cushion – $420.00

Shipping Dimensions

Chair:
54" × 34" × 31"
Weight: 300 lbs

Cushion:
51" × 24" × 10"
Weight: 27 lbs
