Tpc Dental Mirage 1.0 Patient Chair Model 4000-1.0

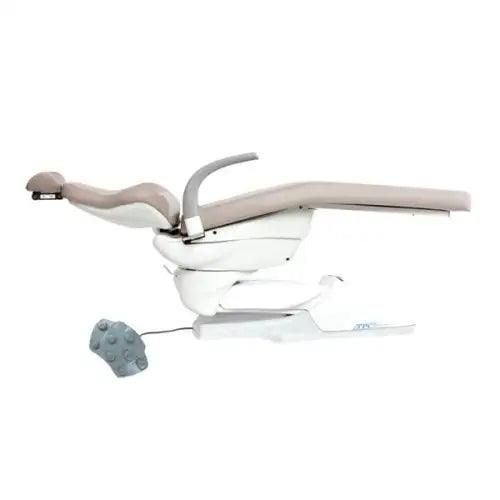

Mirage 1.0 Hydraulic Patient Chair #4000-1.0

Product includes the following:

• Two programmable positions
• One preset exit position
• Electronic foot control with auto return function
• Built-in fuse / surge protection
• Toe guard protection to prevent scuffing
• All-metal construction
• Safety shut-off base plate
• Double articulating headrest, adjustable for height
• and wheelchair positioning
• Locking swivel, 60 degree
• Pivoting armrests for easy entry to and exit from chair
• Seamless Upholstery
• Wide chair back
• Coordinated leg rest tilt
• Input voltage 110V or 220V

• Synchronous backrest
• Articulating dual axis headrest
• Cast aluminum base
• Swing-away armrests
• Programmable foot control
• Short pump cover

Specifications: Lifting/lowering mechanism:

• Hydraulic, cantilever type
• Initial height/stroke: 15.5” / 15”
• Backrest reclining angle: 0° (Horizontal) – 70°
• Seat tilting: 10° – 20°, synchronized with backrest
• Preset position:
• Microcomputer control. Three preset position, autoreturn, last position
• Chair rotation angle: 30° left / 30° right of centerline
• Headrest: Dual axis type
• Safety shut-off plate: Under the main link
• Emergency stop: Any switch can cancel chair movement
• Warranty 5 Year Limited

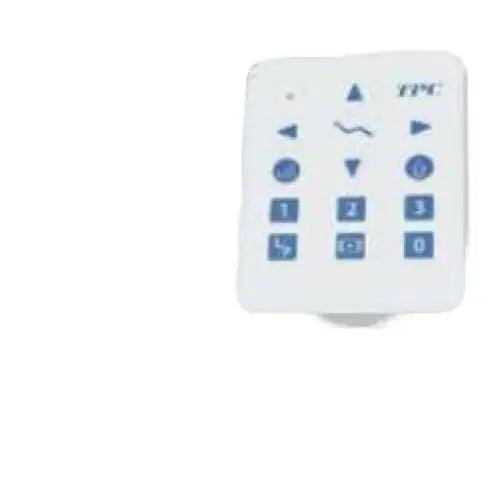

• TP-2005 Touch pad control – unit head or dental chair mounted, 3 preset, auto return, last position $358.00
• TPCBRKT TPC post mount chair bracket $290.00
• PC-1000-DU Replacement Dental Chair Upholstery Duration Vinyl -Wide Back $850.00
• PC-1000-Vinyl-UC Upcharge Non-Standard Dental Chair Upholstery Vinyl -Wide Back $490.00
• PC-1000-ULTR-UC Upcharge Ultra leather Dental Chair Upholstery leather -Wide Back $760.00
• PC-1000-PR-UC Upcharge Nauga Soft Dental Chair Upholstery Vinyl -Wide Back ( PR50, 49, 47, 40, 37 ) $300.00

• Chair: 54 x 34 x 31 300 lbs.
• Cushion: 51 x 24 x 10 27 lbs.
• Chair Bracket 22 x 9 x 6 11 lbs.

Warranty Information (All stated warranties are intended for USA market ONLY):

All of our products sold are guaranteed to be free from defects in workmanship and materials for one year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the TPC facility. This guarantee does not cover normal wear or stains on surface finish. The guarantee does not cover damage resulting from improper installation, misuse or accidents incurred in shipping and handling. All claims against the freight carrier must be initiated at the time the damaged items are received. The claim is the responsibility of the customer. We are improving our products on a continuous basis. We reserve the right to make modifications without the need for prior notification and are not obliged.

Products: Warranty Period:

• Products: Warranty Period: Patient Chairs 5 year limited
• Delivery Units 5 year Limited
• Seating 1 year
• Curing & Bleaching Systems 2 years
• Mobile Cabinets 1 year
• Imaging Products 1 year
• Air-Driven Handpieces 1 year
• Scaling Products 1 year Amalgamator
• 1 year Air Compressor 5 Year limited
• Vaccumm Pump 5 year limite
