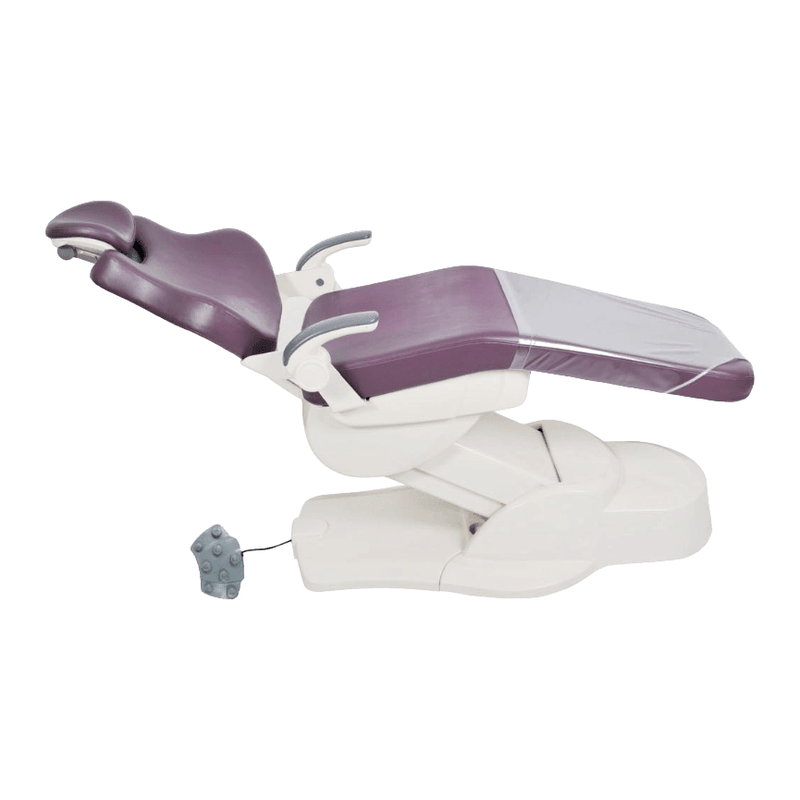

TPC Laguna Electromechanical Patient Chair L2000-1.0

• Model:L2000-1.0
• Manufactured by:TPC
• Warranty: 5 YEARS
• Condition: New

• Two programmable positions
• One preset exit position
• Electronic foot control with auto return function
• Double articulating headrest, adjustable for height and wheelchair positioning
• Toe guard protection to prevent scuffing
• All metal construction
• Seamless upholstery
• Built-in fuse / surge protection
• Input voltage 110V or 220V.

• Lifting/lowering mechanism: Electromechanical, cantilever type
• Initial height/stroke: 15.5” / 15”
• Backrest reclining angle: 0° (Horizontal) – 70°
• Seat tilting: 10° – 20°, synchronized with backrest
• Preset position: Microcomputer control. Three preset position, auto return, last position
• Chair rotation angle: Fixed
• Headrest: Dual axis type
• Safety shut-off plate: Under the main backrest link
• Emergency stop: Any switch can cancel chair movement
• Warranty 5 Year Limited

• Independent backrest
• Articulating dual axis headrest
• Solid steel base
• Programmable foot control

Dimensions (L x W x H) Weight Chair:

• 54 x 34 x 32 300 lbs.
• Cushion: 51 x 9 x 23 27 lbs

• TP-2007-U Touch pad control – Unit mounted, 3 preset, auto return, last position $ 358.00
• PC-5000-DU Upcharge Dental Chair Upholstery-Wide Back $790.00
• Duration Vinyl- Specify Color and Product Code PC-5000-Vinyl-UC Upcharge Non-Standard Dental Chair Upholstery-Wide Back $490.00
• Vinyl- Specify Color and Product Code PC-5000-ULTR-UC Upcharge Ultra leather Dental Chair Upholstery-Wide Back $760.00
• Ultra leather- Specify Color and Product Code LAGBRKT Laguna Post mount chair bracket $ 290.00.

Warranty Information (All stated warranties are intended for USA market ONLY):

All of our products sold are guaranteed to be free from defects in workmanship and materials for one year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the TPC facility. This guarantee does not cover normal wear or stains on surface finish. The guarantee does not cover damage resulting from improper installation, misuse or accidents incurred in shipping and handling. All claims against the freight carrier must be initiated at the time the damaged items are received. The claim is the responsibility of the customer. We are improving our products on a continuous basis. We reserve the right to make modifications without the need for prior notification and are not obliged.

Products: Warranty Period:

• Products: Warranty Period: Patient Chairs 5 year limited
• Delivery Units 5 year Limited
• Seating 1 year
• Curing & Bleaching Systems 2 years
• Mobile Cabinets 1 year
• Imaging Products 1 year
• Air-Driven Handpieces 1 year
• Scaling Products 1 year Amalgamator
• 1 year Air Compressor 5 Year limited
• Vaccumm Pump 5 year limited
