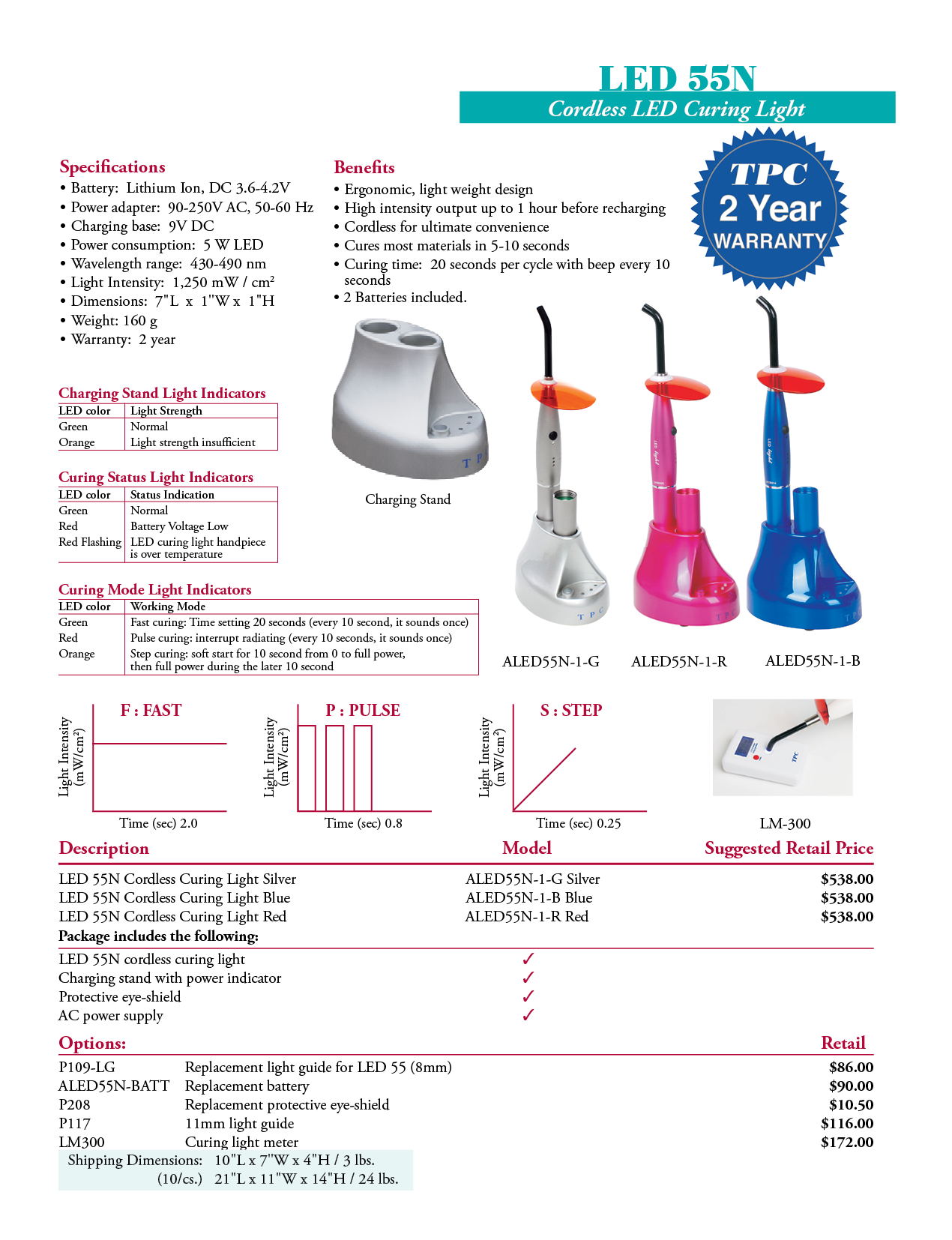

TPC LED 55N Cordless Curing Light ALED55N-1-G

Original price $357.00 - Original price $357.00
Original price $357.00
$395.00
$395.00 - $395.00
Current price $395.00

Do you have questions about this product?

Availability and delivery time?

Be the first to ask a question about this.

Ask a Question

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare

TPC LED 55N Cordless Curing Light ALED55N-1-G

  • LED 55N Cordless Curing Light Silver ALED55N-1-G Silver
  • LED 55N Cordless Curing Light Blue ALED55N-1-B Blue
  • LED 55N Cordless Curing Light Red ALED55N-1-R Red

Specifications

  • Battery: Lithium Ion, DC 3.6-4.2V
  • Power adapter: 90-250V AC, 50-60 Hz
  • Charging base: 9V DC
  • Power consumption: 5 W LED
  • Wavelength range: 430-490 nm
  • Light Intensity: 1,250 mW / cm2
  • Dimensions: 7"L x 1"W x 1"H
  • Weight: 160 g
  • Warranty: 2 year

Benefits

  • Ergonomic, light weight design
  • High intensity output up to 1 hour before recharging
  • Cordless for ultimate convenience
  • Cures most materials in 5-10 seconds
  • Curing time: 20 seconds per cycle with beep every 10 seconds
  • 2 Batteries included

Charging Stand Light Indicators

  • LED color Light Strength
  • Green Normal
  • Orange Light strength insufficient

Curing Status Light Indicators

  • LED color Status Indication
  • Green Normal Red Battery Voltage Low
  • Red Flashing LED curing light handpiece is over temperature

Curing Mode Light Indicators:

LED color Working Mode

Green Fast curing: Time setting 20 seconds (every 10 second, it sounds once) Red Pulse curing: interrupt radiating (every 10 seconds, it sounds once) Orange Step curing: soft start for 10 second from 0 to full power, then full power during the later 10 second

Package includes the following:

  • P109-LG Replacement light guide for LED 55 (8mm)
  • ALED55N-BATT Replacement battery
  • P208 Replacement protective eye-shield
  • P117 11mm light guide
  • LM300 Curing light meter

All returns require prior authorization. Returns must be authorized by TPC within 7 days of date received by the customer.
• Contact Customer Service for Return Authorization Number
• Returned products are subject to a 25% restocking charge
• All returned goods must have Return Authorization Number
• All returned goods must be shipped prepaid
• All authorized returns must be received by TPC in original packaging, accessories, documentation and in original condition
for credit considerations
• All outbound repair / warranty freight charges are the responsibly of the customer.
• No returns accepted after 14 days.
Special Orders:
• Special order items and custom made products are not returnable for credit
Minimum Orders:
• Orders less than $50.00 will incur an additional $5.00 handling charge.
• All drop ship orders will incur an additional $5.00 fee.

All of our products sold are guaranteed to be free from defects in workmanship and materials for one year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the TPC facility. This guarantee does not cover normal wear or stains on surface finish. The guarantee does not cover damage resulting from improper installation, misuse or accidents incurred in shipping and handling. All claims against the freight carrier must be initiated at the time the damaged items are received. The claim is the responsibility of the customer. We are improving our products on a continuous basis. We reserve the right to make modifications without the need for prior notification and are not obliged to modify previously manufactured items. Bulbs and batteries are not covered under any type of warranty.
